High Mast Lighting Poles

Overview

High-mast lighting installations are often located where today's most busy expressways merge or intersect. We offers tapered steel high-mast poles for transportation applications and also for other large-area lighting applications, such as those found at car parks, railways, airports, toll plazas shipping terminal bus terminal facilities and large heavy-industry zones etc. Our High masts go through stringiest quality checks to adhere to Indian and International standards. We have supplied more masts with different operating systems, ranging from 10 to 50 meter.

Technical Specification

We design and manufacture high mast with the best in world class material and specification.

Technical Data Sheet
Height 12.5M 16M 20M 25M 30M
No. of Sections 2 2 2 3 3
Top & Bottom dia in mm OAF 360 & 150 360 & 150 410 & 150 460 & 150 540 & 150
Thickness of sections (mm) 3/3 4/3 4/3 5/4/3 5/4/4
Base Plate (mm) 520×25 560×25 650×25 670×25 740×30
PCD (mm) 445 460 550 590 650
Download Brochure
Standard Features
Raising/lowering Speed 3 meters/mm
Lubrication arrangement & type Permanent oil bath – SAE 90/140
SS wire rose AISI 316, 7/19 Const
*Dia of rope & breaking load 6 mm & 2350 kg/rope
Lifting Capacity 500 to 750 kg
Trailing Cable ERP/PCP Sheathed Multi core flexible copper
Power tool (reversible) 440V, 50 HZ, 1 HP/1.5HP
* mtr. Mast given with 5mm Dia of rope

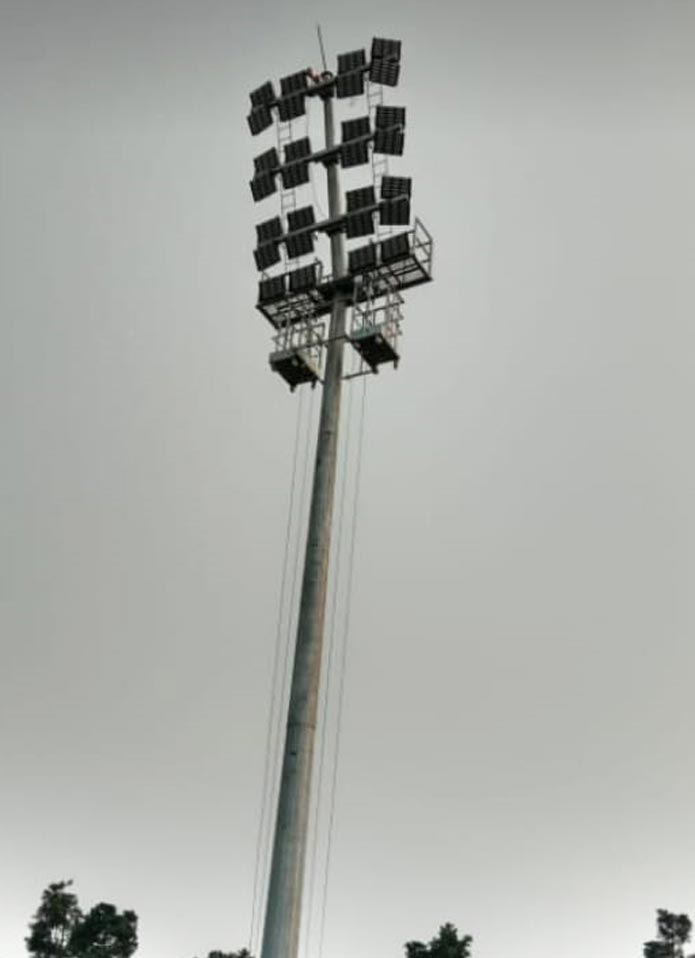

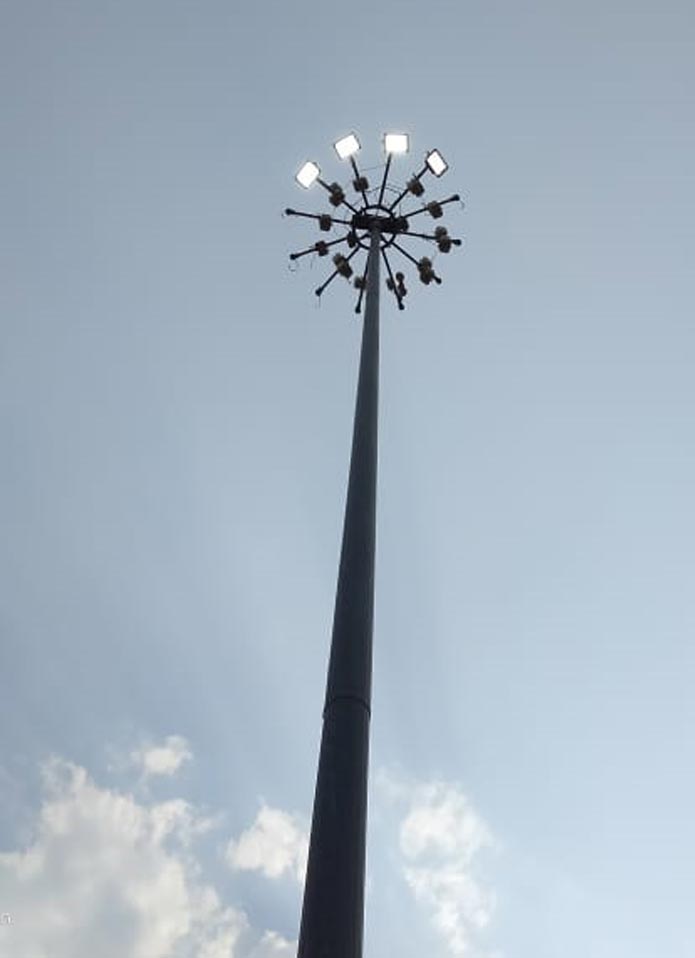

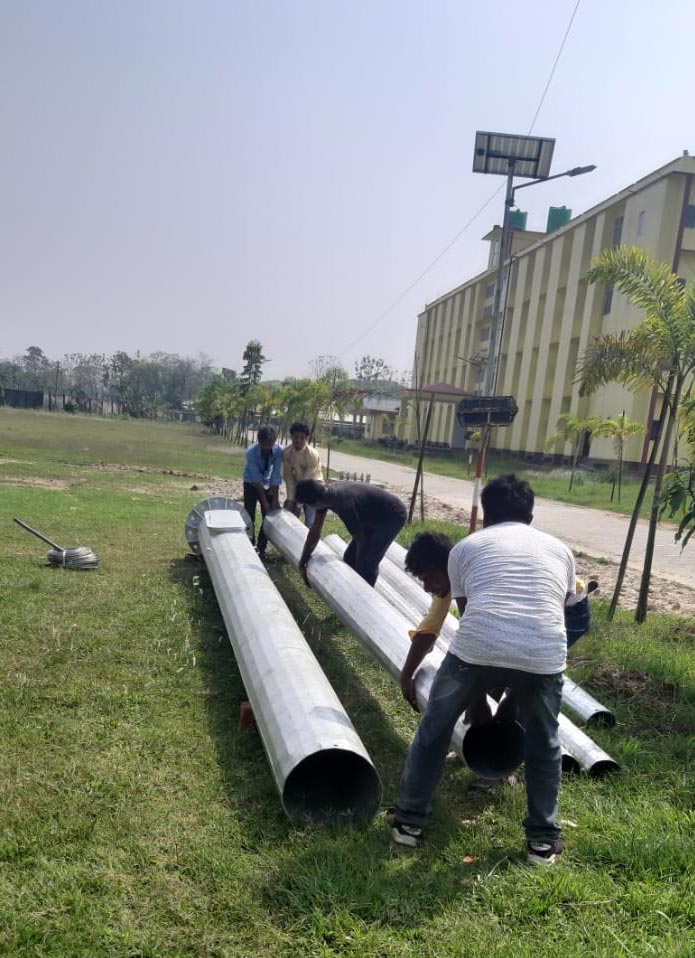

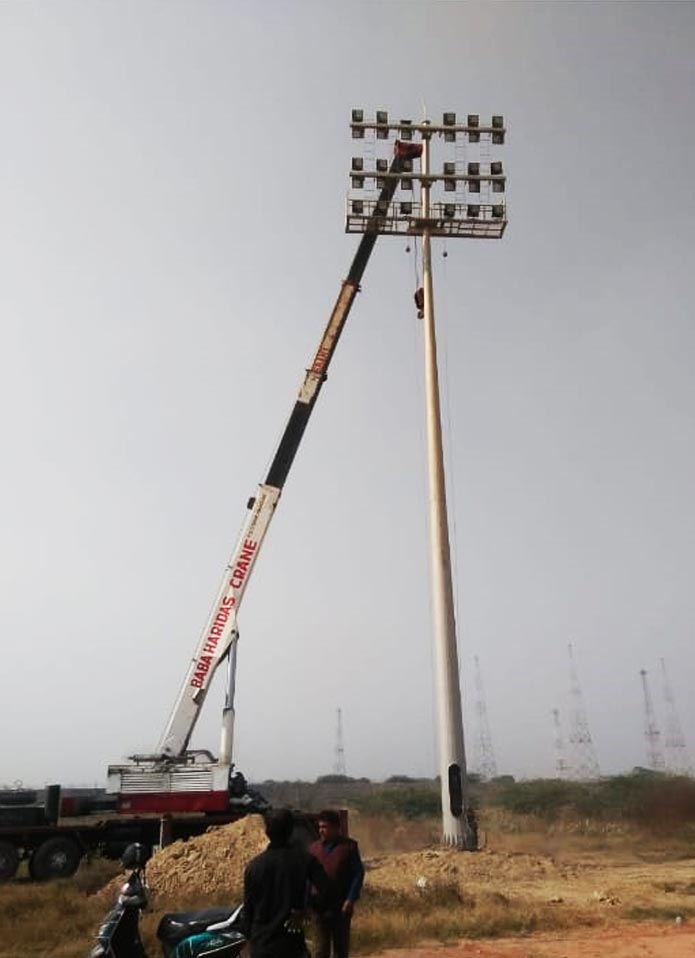

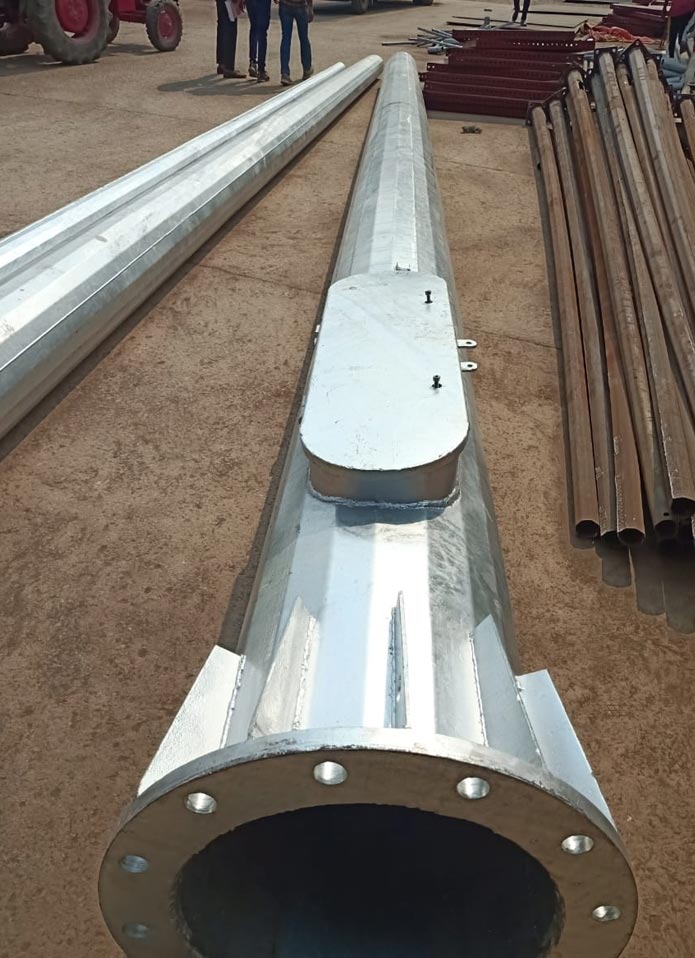

Product Gallery
