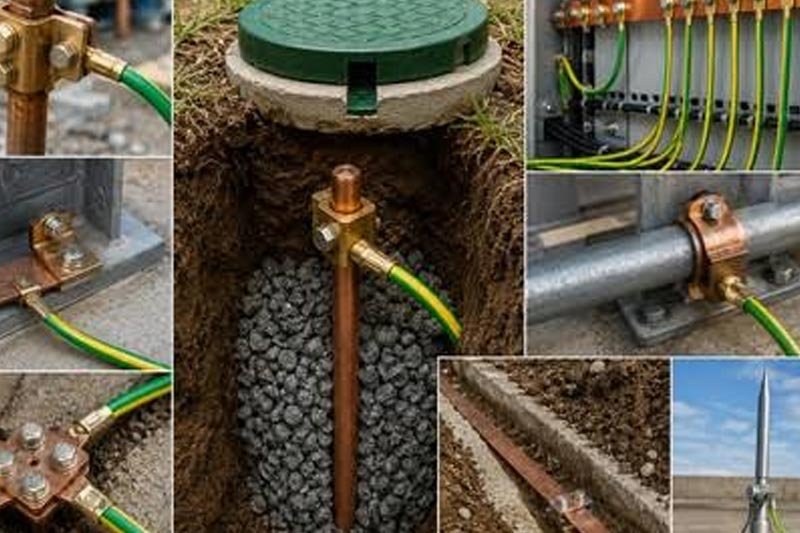

PC Electric's Earthing Systems are designed to provide a reliable path for fault current and help protect electrical equipment, installations and personnel against electrical faults. Our earthing solutions are suitable for a wide range of electrical, industrial, solar, telecom and infrastructure applications.

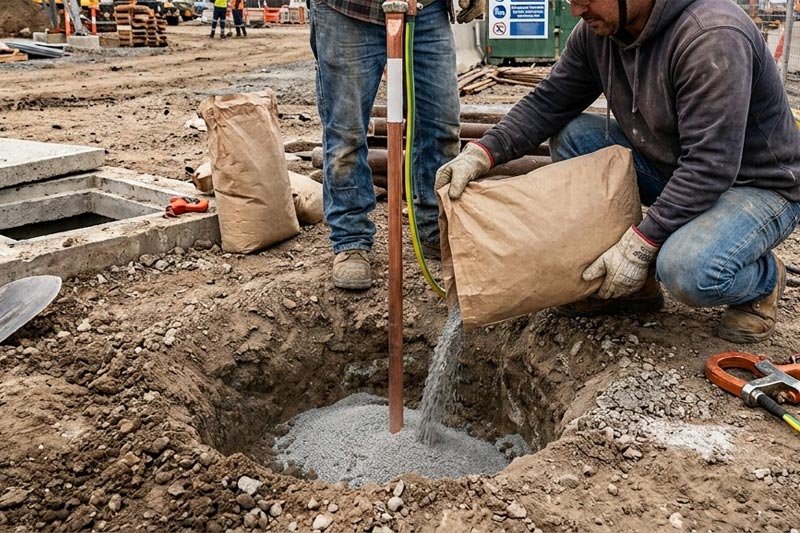

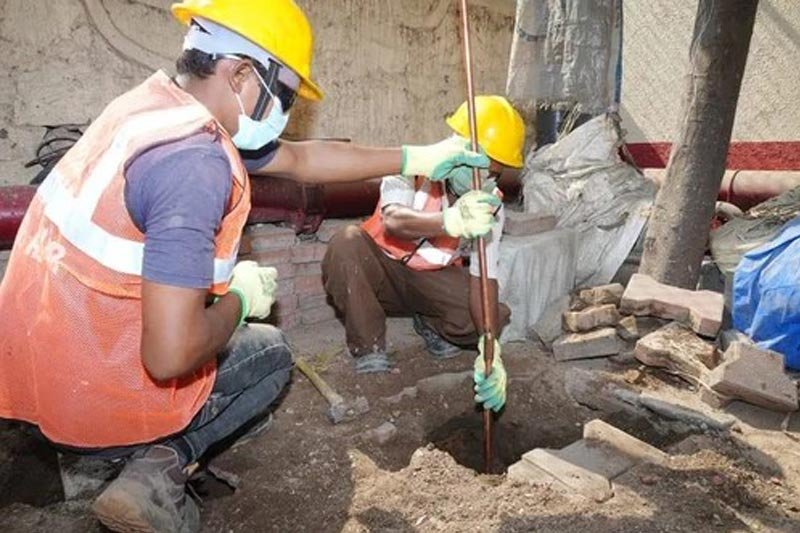

The earthing systems can be configured according to project requirements, soil conditions, electrical system design and applicable standards. Solutions include maintenance-free chemical earthing systems using corrosion-resistant electrodes and conductive earthing compounds, as well as portable/mobile earthing systems for applications requiring temporary or flexible earthing arrangements. earting
Designed for dependable performance and low maintenance, PC Electric's earthing solutions help establish a stable grounding arrangement for electrical installations while supporting long-term system safety and reliability.
| Parameter | Specification |
|---|---|
| Earthing Type | Maintenance-Free Chemical Earthing |
| Electrode Type | Copper-Bonded Steel / GI / Copper* |
| Electrode Size | 50 mm Dia × 3000 mm Length* |
| Copper Coating | Minimum 250 Micron* |
| Installation | Vertical |
| Earthing Compound | Conductive, moisture-retaining, non-corrosive compound |
| Backfill | Earthing enhancement / conductive compound |
| Earth Pit | Approx. 450 × 450 × 1000 mm or as per site design |
| Inspection Chamber | RCC / FRP / Polymer |
| Earth Strip | GI 25 × 3 mm / 50 × 6 mm or as per design |
| Connection | GI/Copper strip or suitable conductor |
| Maintenance | Low Maintenance / Maintenance-Free |
| Testing | Earth resistance testing using approved earth tester |

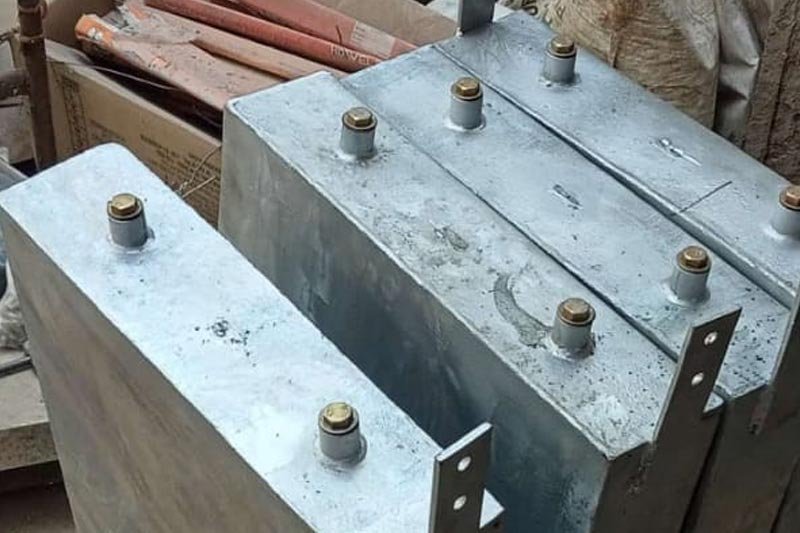

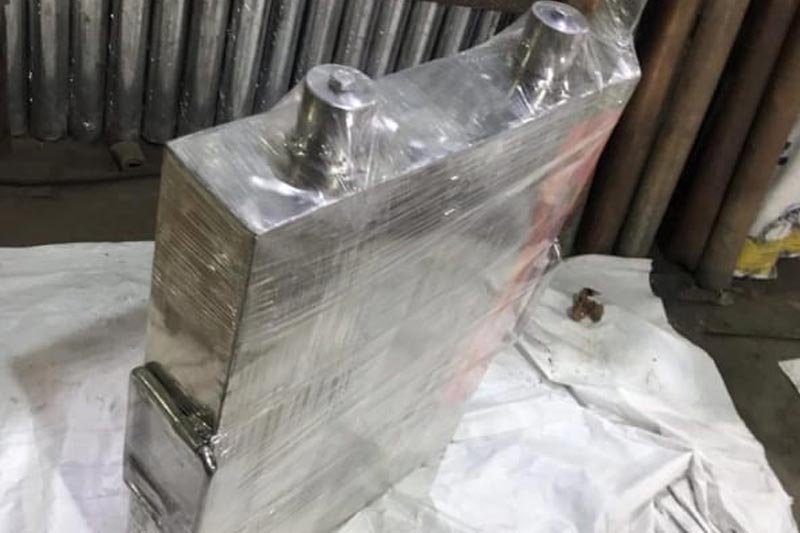

| Parameter | Specification |
|---|---|
| Product Type | Copper/GI Portable Mobile Earthing System |
| Dimensions | 600 × 450 × 100 mm |
| Material | GI |
| GI Sheet/Plate Thickness | 1.6 / 2 mm |
| Product Life | 10 Years |
| Outer Plate | 600 × 450 × 100 mm, 2 mm thick GI |
| Inner Plate | 450 × 450 × 1.5 mm Copper |
| Terminal | 40 × 6 × 200 mm Copper – 2 Nos. |
| Terminal Hole | M10 × 2 |
| Socket & Handle | 50 mm socket with handle – 2 Nos. |
| Load Carrying Capacity | 200 KVA |
| Inner Compound | High-conductive crystalline conductive mixture |
| Weight | 45 kg |
| Connecting Conductor | 50 sq. mm PVC-insulated flexible copper cable |
| Cable Length | 1.5 m |
| Junction Box | GI junction box for 2 electrodes |
| Applicable Standard | IEC 62561-2 |
